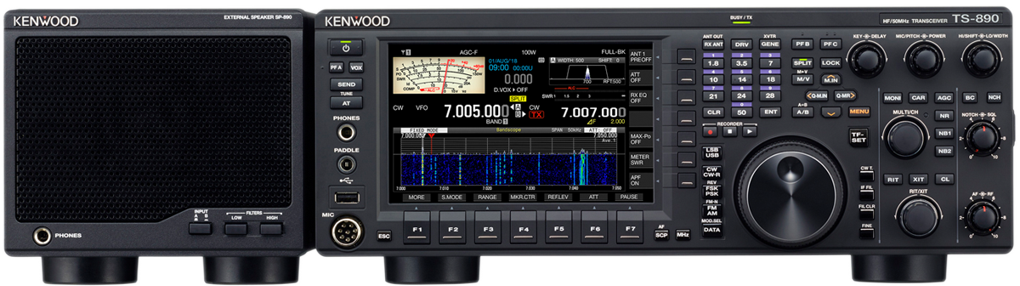

General Frequency range
(Transmitter)160m band 1.81 ~ 2.0 MHz 80m band 3.5 ~ 4.0 MHz 60m band *1 5.1675 MHz, 5.25 ~ 5.45 MHz 40m band 7.0 ~ 7.3 MHz 30m band 10.1 ~ 10.15 MHz 20m band 14.0 ~ 14.35 MHz 17m band 18.068 ~ 18.168 MHz 15m band 21.0 ~ 21.45 MHz 12m band 24.89 ~ 24.99 MHz 10m band 28.0 ~ 29.7 MHz 6m band 50.0 ~ 54.0 MHz Frequency range (Receiver) 0.13 ~ 30 MHz, 50 ~ 54 MHz,
VFO: Continuous 30 kHz ~ 60 MHzMode A1A(CW), A3E(AM), J3E(SSB), F1B(FSK), F3E(FM), G1B(PSK) Frequency stability ±0.1 ppm, +32 °F ~ +122 °F (0 °C ~ +50 °C) Antenna impedance 50 Ω Antenna tuner load range 16.7 Ω ~ 150 Ω Supply voltage DC 13.8 V ±15 % Ground Negative ground Current Drain TX 22.5 A or less RX (No signal) 2.5 A or less Operating Temperature +32°F ~ +122 °F (0 °C ~ +50 °C) Dimensions Without projections W15.59 x H5.56 x D13.38 in. (W396.0 × H141.3 × D340.0 mm) With projections W16.13 x H6.23 x D15.25 in. (W409.6 × H158.3 × D387.4 mm) Weight Approx. 34.8 lbs (15.8 kg)
Transmitter Output Power (AM) Max 100 W / Min 5 W, (Max 25 W / Min 5 W) Modulation SSB: Balanced, AM: Low Power, FM: Reactance Maximum frequency deviation (FM) wide: ±5 kHz or less, narrow: ±2.5 kHz or less Spurious emissions HF: -50 dB or less 50 MHz: -60 dB or less Carrier suppression 60 dB or more Unwanted sideband suppression 60 dB or more Transmit frequency response Within -6 dB (100 ~ 2,900 Hz) Microphone impedance 600 Ω XIT variable range ±9.999 kHz
Receiver Circuit type Double Superheterodyne Intermediate frequency 1st IF 8.248 MHz 2nd IF 24 kHz / 36kHz (FM) Sensitivity
(TYP)SSB / CW / FSK / PSK
(S/N 10 dB)0.5 μV (0.13 ~ 0.522 MHz) 4 μV (0.522 ~ 1.705 MHz) 0.2 μV (1.705 ~ 24.5 MHz) 0.13 μV (24.5 ~ 30 MHz) 0.13 μV (50 ~ 54 MHz) AM (S/N 10 dB) 6.3 μV (0.13 ~ 0.522 MHz) 31.6 μV (0.522 ~ 1.705 MHz) 2 μV (1.705 ~ 24.5 MHz) 1.3 μV (24.5 ~ 30 MHz) 1.3 μV (50 ~ 54 MHz) FM (12 dB SINAD) 0.22 μV (28 ~ 30 MHz) 0.22 μV or less (50 ~ 54 MHz) Squelch Sensitivity SSB / CW / FSK / AM 5.6 μV or less (0.13 ~ 0.522 MHz) 18 μV or less (0.522 ~ 1.705 MHz) 1.8 μV or less (1.705 ~ 30 MHz) 1.1 μV or less (50 ~ 54 MHz) FM 0.2 μV or less (28 ~ 30 MHz) 0.2 μV or less (50 ~ 54 MHz) Image Rejection Ratio HF:70 dB or more, 50 MHz: 60 dB or more IF Rejection Ratio 70 dB or more Selectivity SSB 2.6 kHz or more (-6 dB) 4.4 kHz or less (-60 dB) CW / FSK 500 Hz or more (-6 dB) 1.2 kHz or less (-60 dB) AM 6.0 kHz or more (-6 dB) 12 kHz or less (-50 dB) FM 12 kHz or more (-6 dB) 25 kHz or less (-50 dB) RIT variable range ±9.999 kHz Notch filter attenuation 60 dB or more (Auto), 70 dB or more (Manual) Beat cancel attenuation 40 dB or more Audio output 1.5 W or more (8 Ω) Audio output impedance 4 Ω ~ 8 Ω ● Supplied accessories
- ■ DC power cord x1
- ■ 7pin DIN Plug (For REMOTE connector x1)
- ■ 13pin DIN Plug (For ACC2 connector x1)
- ■ Spare Fuse 4A x1
- ■ Spare Fuse 25A x1
- ■ Operation Manual x1
- ■ Warranty Card x1
KENWOOD SKY COMMAND SYSTEM II is a registered trademark of JVC KENWOOD Corporation in the U.S.*1 60 m band: Refer to applicable Amateur Radio regulations to your country.
Electronic specifications apply only to amateur bands. Receive sensitivity drops in the vicinity of the 1st IF frequency (8.248MHz) due to IF trapping.
Internal beat may occur during amateur band receive. Band scope (waterfall) screen may also display spurious signals other than receive signal.
|
